Supercurves

Superparabola and Superellipse

in the Method of Archimedes . . . .


Applications from the Cylinder Hoof Created in MATLAB
hoofcomplement
Hoof in blue, Complement in red.


In MATLAB . . . . . . .

general hoof


General Hoof Animation
superellipse
                                        Superparabola
                           pulseparabola

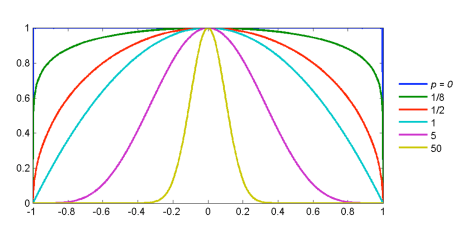

A sampler of curves in the superparabola family.  Note the pulse for large values of p.

We define superparabola as a parabola raised to a  positive power greater than or equal to zero.  Example:

equationparabola

colorsuperellipse
                                        Superellipse
                              cuepellipse

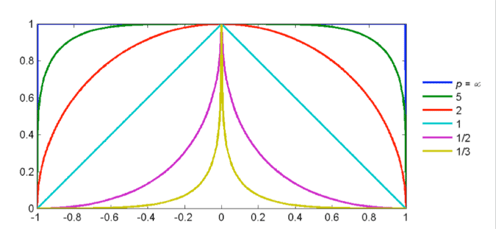

A sampler of curves in the superellipse family.  Note the cusp for small values of p.
The superellipse, also known as the Lamé curve, is used in the following form for the cylinder footprint:

equationellipse

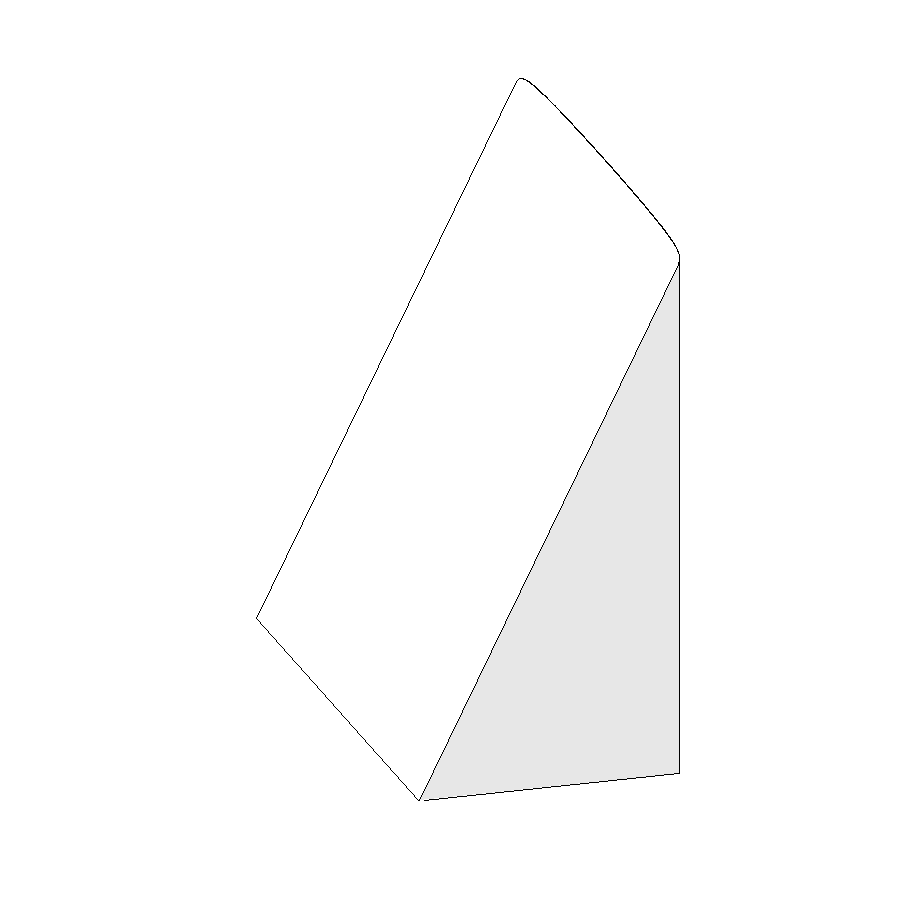

superparabola



superellipse
Hoof, Complement & Cylinder Volume vs. Parameter p.
hoof volume

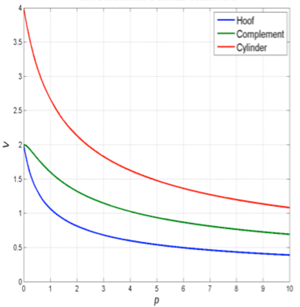

Hoof Volume vs. Parameter p.
hoof,co,cylinder vol



Propositions 13 and 14 of The Method.

From prism to cylinder to half-cylinder to triangular slices of area formed on the "hoof."

animationprop14


To see any of the image full size, place the cursor over the image, right click and select "View Image."

Copyright Notice:  The animations and all images within are under copyright by Cye Waldman and may not be copied, electronically or otherise, without his express permission.

Dr. Cye Waldman,  cye@att.net




References

The half-cylinder, hoof and complement

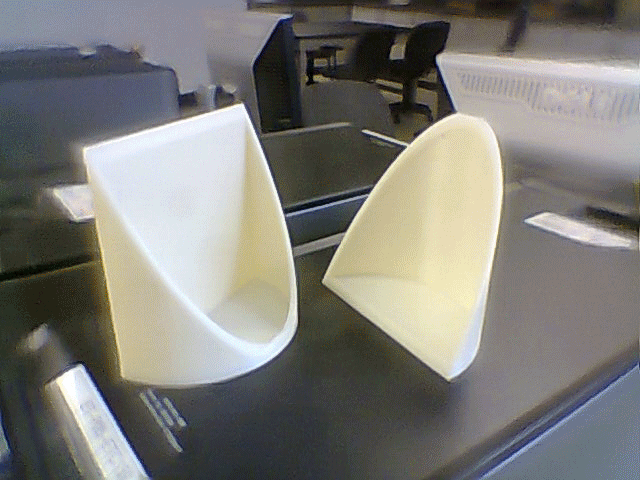

illustrated with 3-D Printer models.

3Dprinter



indexbutton




This web site accompanies the following journal publication:
Gray, Shirley B., Daniel Ye Ding, Gustavo Gordillo, Samuel Landsberger and Cye Waldman; "The Method of Aarchimedes:  Propositions 13 and 14," Notices of the American Mathematical Society,  vol. 62  (October, 2015).
