Propositions 13 and 14

 From the Method of Archimedes . . . .

 Building the Cylinder Hoof in MATLAB and MATHEMATICA
 Heiberg's Hoof 1908
From Heiberg's 1907 publication.

In MATLAB . . . . . . .

Hoof animation


Cylinder Hoof Animation


hoofanimation

From prism to cylinder to hoof .... followed by slices of similar triangles.

To see any of the images full size, place the cursor over the image, right click and select "View Image."

Copyright Notice:  The animations and all images within are under copyright by Cye Waldman and may not be copied, electronically or otherise, without his express permission.
Dr. Cye Waldman,  cye@att.net

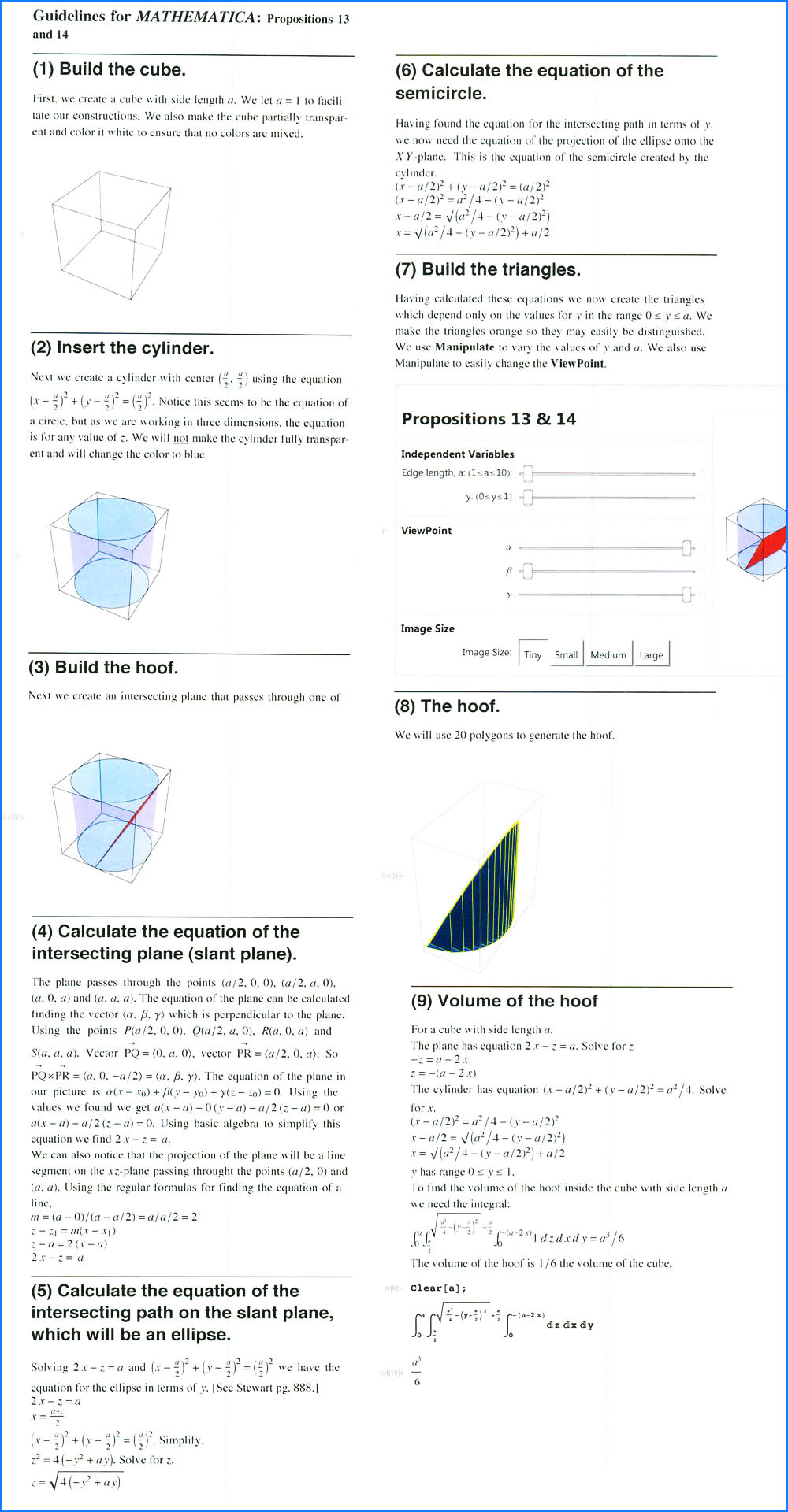

Building the Cylinder Hoof in MATHEMATICA
mathematica code

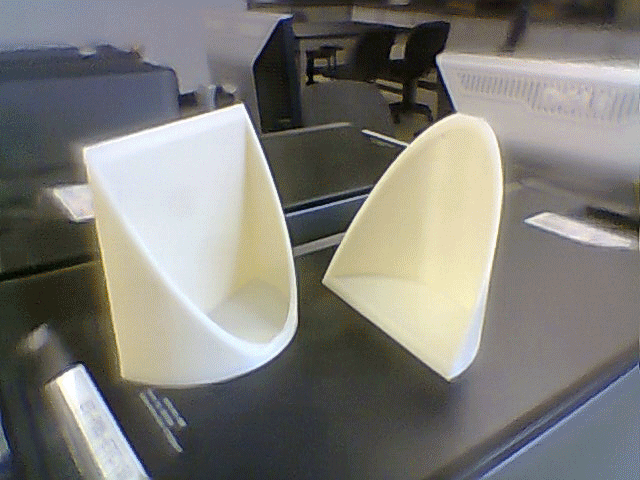

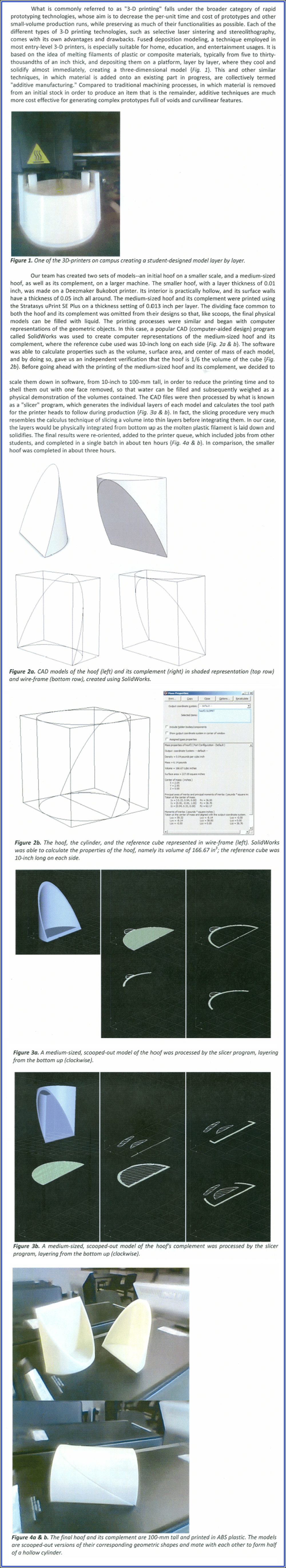

Building the 3-D Printer Models
3Dtext


References

3Dprinter




indexbutton




homebutton
This web site accompanies the following journal publication:
Gray, Shirley B., Daniel Ye Ding, Gustavo Gordillo, Samuel Landsberger and Cye Waldman; "The Method of Aarchimedes:  Propositions 13 and 14," Notices of the American Mathematical Society,  vol. 62  (October, 2015).

J. L. Heiberg, Eine Neue Archimedeshandschrift, Hermes, Volume 42, 1907, pp. 235-303.
J. L. Heiberg and H. G. Zeuthen, Eine Neuve Schrift des Archimedes, Verlag von B. G. Teubner, Leipzig, 1907, pp. 321-363.
Thomas L. Heath, The Method of Archimedes: Recently Discovered by Heiberg, Cambridge, 1912.
